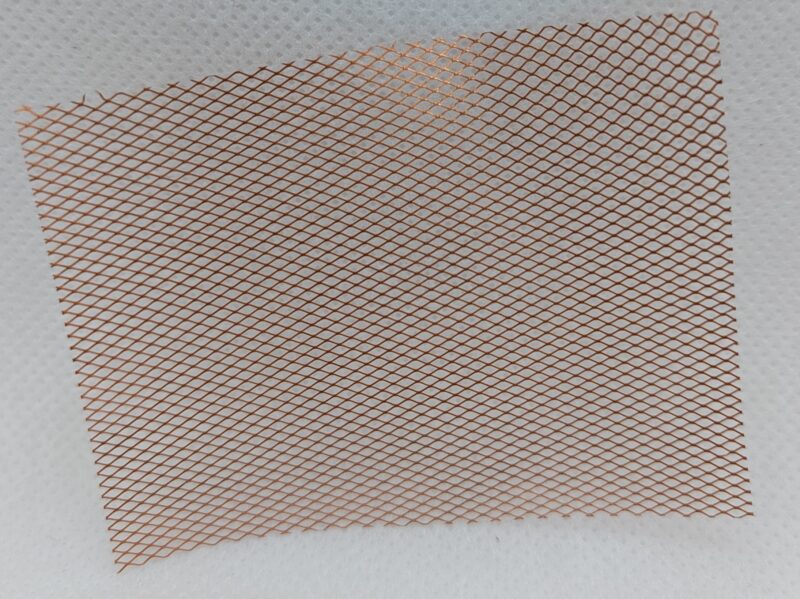

A piece of extruded copper mesh to build your own headgear, such as the Buzsaki lab mouse cap (github, shop), our crown, or the DREAM implant. Includes a piece of mesh sufficient for either of these (4 cm x 8 cm). If you need different sizes, please get in touch!
Parameters
- LWD: 0.05 inch (1.27 mm)
- SWD: 0.03 inch (0.76mm)
- Weight: 0.16 g/sq in (250 g/m² or 25 mg/cm²)
- Dimensions per piece: 4 x 8 cm
Example publications using this copper mesh
- Vandecasteele, M., M., S., Royer, S., Belluscio, M., Berényi, A., Diba, K., Fujisawa, S., Grosmark, A., Mao, D., Mizuseki, K., Patel, J., Stark, E., Sullivan, D., Watson, B., Buzsáki, G. Large-scale Recording of Neurons by Movable Silicon Probes in Behaving Rodents. J. Vis. Exp. (61), e3568, doi:10.3791/3568 (2012).
- Mihály Vöröslakos, Peter C Petersen, Balázs Vöröslakos, György Buzsáki (2021) Metal microdrive and head cap system for silicon probe recovery in freely moving rodent eLife 10:e65859
- Schröder, T., Taylor, R., Abd El Hay, M., Nemri, A., França, A., Battaglia, F., Tiesinga, P., Schölvinck, M. L., Havenith, M. N. The DREAM Implant: A Lightweight, Modular, and Cost-Effective Implant System for Chronic Electrophysiology in Head-Fixed and Freely Behaving Mice. J. Vis. Exp. (209), e66867, doi:10.3791/66867 (2024).
